Red Panda Mixer
- Product Code: Red Panda Mixer
- Availability: 2 - 3 Weeks
-
$149.00
Red Panda Mixer

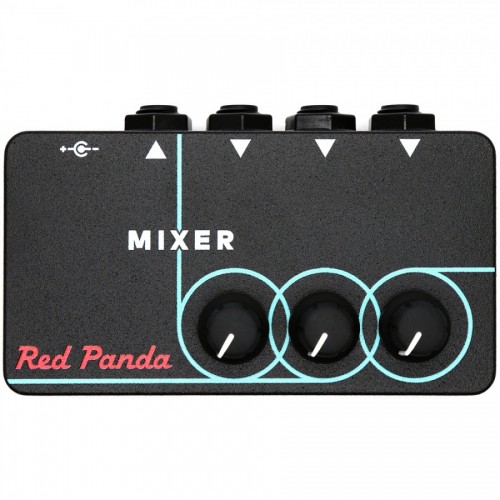

The Bit Mixer is a small, high-quality mixer designed for pedalboards. It features ultra-low distortion, low noise op amps. High-impedance inputs are designed for guitar, but work with line level signals as well. Each input has a volume knob that goes from off to unity gain. Only 4.4” x 2.6”, and works with standard pedal power supplies from 9-18 V. Designed and assembled in USA.
The Bit Mixer is always on when power is connected. An internal LED is visible below the power jack.
Usage
- Connect multiple instruments to one amp
- Combine parallel effects chains
- Clean blend or analog dry path
- Size:
- 4.4" x 2.6" x 1.5"
- Input impedance:
- 1 MΩ
- Output impedance:
- < 1 kΩ
- Frequency response (± 3 dB):
- 20 Hz - 40 kHz
- Signal-to-noise ratio:
- 90 dB
- Power:
- 9-18 VDC, center negative
- Current:
- 40 mA
